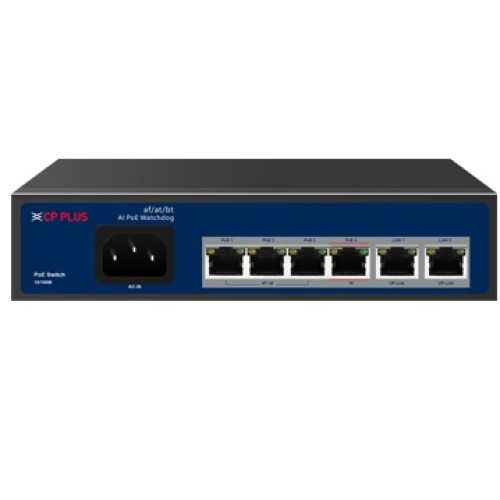

CP-ANW-HP4H2-N65 4EP + 2E 10/100Mbps AI PoE Switch

Feature Specification Network Port PoE (1~3) :10/100Mbps PoE ports (RJ45) PoE (4) :10/100Mbps PoE port, BT port, Compatible uplink port (RJ45) LAN (1~2):10/100Mbps uplink port (RJ45) Network Standard IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power over Ethernet Transmission Rate 200Mbps Full Duplex; 10 or 100Mbps Half Duplex Transmission Distance 100Mbps /10Mbps Adaptive MAX 250m MAC Address Table 2K Bandwidth 1.2 Gbps Network Latency (10 to 100Mbps): ?16?s (use the 64byte package size) Frame Filter & Transmission Rate 14800pps the most for 10Mbps port, 148800pps the most for 100Mbps port Power Budget 65W Power Input AC 180~240V Total ?65W PoE Watchdog Port 1~4 Power Output PoE 1~3 Port: 1/2(+52V), 3/6 (GND)?30W PoE 4 Port: 1245(+53V), 3678 (GND) compatible1/2 (+52V), 3/6 (GND)?60W Lightning Protection 6KV, Per: IEC61000-4-5 ESD Protection 8KV, Per: IEC61000-4-2 Operating Temperature -30°C ~60°C Working Humidity 10%~90% (Non-condensing) *Product casing and specifications are subject to change without prior notice THINK CP PLUS THINK SECURITY Feature Specification Storage Temperature -40°C ~70°C Storage Humidity 5%~90% (Non-condensing) Dimensions 187mm(L) x 139mm(W) x 43mm(H) Warranty 2 Year Package Content Installation Manual
