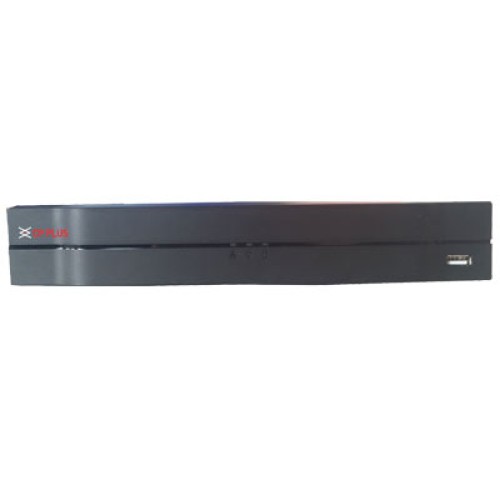

CP-UNR-104F1 4Ch. Network Video Recorder(STQC APPROVED)
₹3,770.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Processor | Industrial-grade embedded processor |
| Operating System | Embedded LINUX |
| User Interface | Web/operating in local GUI |
| Video Output | 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P |
| Video Resolution | 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF |
| Video Recording | 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding. |
| Video Display Split | 1/4 |
| Bandwidth Incoming | 80 Mbps |
| Channel | 4 |
| Motion Detection | Supports |
| Video Loss | Supports |
| Smart Phone | iPhone, iPad, Android Phone |
| Hard Disk | 1 SATA 2.0, up to 8TB Each |
| Recording Mode | Priority of record mode: Manual recording, alarm recording, motion detection recording, timed recording |
| Backup Mode | USB Device |
| Playback | Play, pause, stop, fast forward, fast backward, rewind, play by frame, Full screen, backup (cut/file), partially enlarge, audio on/off |
| Ethernet | 1 RJ-45 port (10/100Mbps) |
| Interface Ports | 2 USB Ports (1 Rear USB 2.0 , 1 Front USB 2.0 ) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P, ONVIF (profile T/profile S/ profile G), RTSP, CGI, SDK |
| Power Supply | DC12V, 1.5A |
| Power Consumption | <10W (Without HDD) |
| Working Temp | -10°C to 45°C (+34°F to +113°F) |
| Dimension | 260 mm×225 mm×47.6 mm (W × L × H) |
| Weight | 0.81kg (without HDD) |
