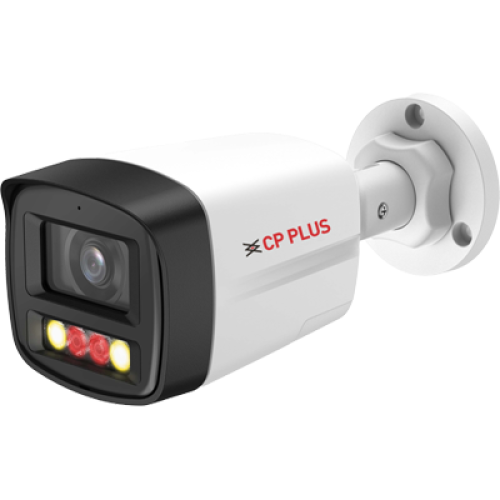

CP-UNC-TA21L3B-LQ 2MP Dual Light Bullet Camera - 30Mtr.

Name: eTransit Security Systems
Address: G10 SNS Interio, Nr. CNG Gas Station Althan Road, Bhatar Char Rasta, Althan, Surat 395007. Gujarat (India, SURAT, 395007, IN
Telephone: +91 9723544444

₹3,634.00

(Inclusive of all taxes)

Installation Required ₹300.00

1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters) Max. 2MP (1920 × 1080)@25/30fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Triple stream Support Built-in Mic, Built-in Speaker 3.6mm fixed Lens DWDR, Day/Night(ICR), 3D NR, ROI, AW

SKU: CP-UNC-TA21L3B-LQ

By Ordering this product you are bound to Accept our Terms & Condition

Add to Cart

Warranty : 2

Description

Image Sensor	1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters)
Effective Pixels	1920 (H) × 1080 (V)
Minimum Illumination	0.001 [email protected] (Color, 30 IRE), 0.001 [email protected] (B/W, 30 IRE), 0 lux (IR on)
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
RAM	128 MB
White Balance	Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
ROM	128 MB
Gain Control (AGC)	Auto/ Manual
Lens Type	Fixed-focal
Max. Aperture	F1.4
Lens Mount	M12
Close Focus Distance	3.6 mm: 1.1 m
DORI Distance	Lens 3.6 mm: 53.8 m (Detect), 21.5 m (Observe), 10.8 m (Recognize), 5.4 m (Identify)
Lens	3.6mm fixed Lens
S/N Ratio	>56dB
Back Light Compensation	BLC/ HLC/ DWDR
Video Compression	Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream)
Angle of view	3.6 mm: H: 86°, V: 46°, D: 103°
IR Number	2 IR LED, 2 Warm light
IR	IR Range of 30 Mtr.
Warm Light	Warm Light Range of 30 Mtr.
IR Control	Auto, Manual
Smart Illumination	Support
Stream Capability	Triple stream
Frame Rate	Main stream 2MP (1920 × 1080), 1.3MP (1280 × 960) ,720p (1280 × 720)@25/30fps Sub stream 1: 720p/D1/VAG/CIF@25/30Fps Sub stream 2: D1/VGA/CIF/@25/30fps
Resolution	2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Noise Reduction	3D NR
Iris Control	Fixed
Privacy Mask	8 areas
Video Format	PAL/NTSC
ROI	Support (8 areas)
Audio Compression	G.711a, G.711Mu, PCM, G.726, AAC
Audio	Built-in Mic
OSD	Camera title, Date & Time
Bit Rate Control	CBR/VBR
Bit Rate	H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps
Protocol	SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
Day/Night	Auto(ICR)/Color/B/W
SMD	Support the classification and accurate detection of human and vehicle
Mirror Function	Support
Ethernet	RJ-45 (10/100 Base-T)
SDK and API	Support
Browser	IE, Chrome, Firefox
Smart IR	Support
User/ Host	6 (Total bandwidth: 48 M)
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2MP resolution and lower)
Certificates	ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report
Power Source	12 VDC/ PoE (802.3at)
Power Consumption	Basic: 1.9 W (12 VDC); 2.4 W (PoE) Max.: 11.5 W (12 VDC) 13.1 W (PoE) (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker)
Weatherproof Standard	IP67
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	?95%(RH), non-condensing
Storage Humidity	?95%(RH), non-condensing
Casing	Metal + Plastic
Dimensions	196.74 mm ×78.8 mm × 74.5 mm
