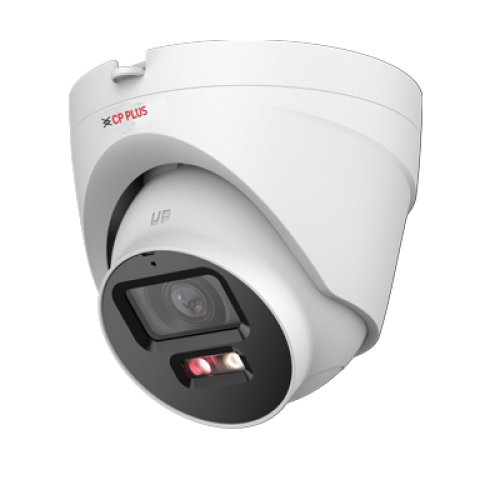

CP-UNC-DA21L3B-LQ 2MP Dual Light Dome Camera - 30Mtr.(STQC APPROVED)

Name: eTransit Security Systems
Address: G10 SNS Interio, Nr. CNG Gas Station Althan Road, Bhatar Char Rasta, Althan, Surat 395007. Gujarat (India, SURAT, 395007, IN
Telephone: +91 9723544444

₹3,582.00

(Inclusive of all taxes)

Installation Required ₹300.00

1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters) Max. 2MP (1920 × 1080)@1–25/30 fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Triple stream Support Built-in Mic, Built-in speaker 3.6mm fixed Lens DWDR, Day/Night (ICR), 3D NR, ROI

SKU: CP-UNC-DA21L3B-LQ

By Ordering this product you are bound to Accept our Terms & Condition

Add to Cart

Warranty : 2

Description

Image Sensor	1/2.7
Effective Pixels	1920 (H) × 1080 (V)
Minimum Illumination	0.001 [email protected] (Color, 30 IRE), 0.001 [email protected] (B/W, 30 IRE), 0 lux (IR on)
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Shutter Speed	Auto/Manual 1/3 s–1/100,00
White Balance	Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
ROM	128 MB
Gain Control (AGC)	Auto/Manual
Lens Type	Fixed-focal
Max. Aperture	F1.4
Lens Mount	M12
Close Focus Distance	1.1 m
Day/Night	Auto(ICR)/Color/B/W
DORI Distance	Lens 3.6mm: 53.8 m (Detect), 21.5 m (Observe), 10.8 m (Recognize), 5.4 m (Identify)
Back Light Compensation	BLC/ HLC/ DWDR
IR Control	Auto, Manual
IR Number	1 IR LED, 1 Warm light
IR	IR Range of 30 Mtr.
Warm Light	Warm Light Range of 30 Mtr.
Video Compression	Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
Stream Capability	Triple stream
Frame Rate	Main stream: 2MP (1920 × 1080)@1–25/30 fps Sub stream 1: 720P (1280 × 720), D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288)@1-25fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps
Angle of view	3.6 mm: H: 86°, V: 46°, D: 103°
Smart search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Resolution	2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Noise Reduction	3D NR
Privacy Mask	4 areas
Built-in Speaker	Support
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2MP resolution and lower)
Video Format	PAL/NTSC
Audio Compression	G.711a, G.711Mu, PCM,
Protocol	SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
OSD	Camera title, Date & Time
Ethernet	RJ-45 (10/100 Base-T)
Iris Control	Fixed
Mirror Function	Support
Bit Rate Control	CBR/VBR
Bit Rate	H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps
Cyber Security	AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot
Browser	IE, Chrome, Firefox
User/Host	6 (Total bandwidth: 36 M)
Certificates	ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report
Power Source	12 VDC/PoE (802.3af)
Power Consumption	Basic: 1.8 W (12 VDC), 2.5 W (PoE); Max.: 8.5 W (12 VDC), 10 W (PoE) (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker)
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	?95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	?95%(RH), non-condensing
Casing	Metal
Dimensions	100.9 mm × 109.9 mm
