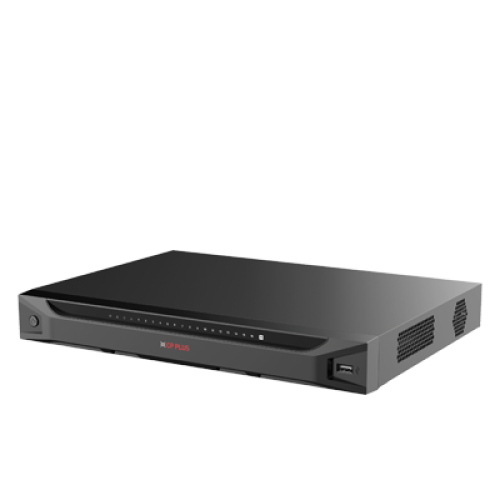

CP-UNR-4K2161-V4 16 Ch. 4K Network Video Recorder
₹6,750.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| IP Camera Input | 16 channels |
| User Interface | Web, Local GUI |
| AI by Camera | Perimeter protection, SMD |
| AI by NVR | SMD |
| Perimeter Performance of AI by Camera | All channels (4 targets/s) |
| Video Output | 1 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, 960p, D1, CIF, QCIF |
| Network Bandwidth | AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing |
| Decoding Capability | AI Disabled: 1 channel 12 MP@30 fps, 1 channel 8 MP@30 fps, 2 channel 6 MP@30 fps, 2 channel 5 MP@30 fps, 3 channel 4 MP@30 fps, 6 channel 1080p@30 fps AI Enabled: 1 channel 8 MP@30 fps, 1 channel 6 MP@30 fps, 1 channel 5 MP@30 fps, 2 channel 4 MP@30 fps, 4 channel 1080p@30 fps |
| Video Display Split | 1/4/8/9/16 |
| Video Compression | Instastream, H.265, H.264+, H.264, MJPEG |
| Hard Disk | 1 SATA port, each disk can contain up to 20 TB. This limit varies depending on the environment temperature |
| Playback | Instant playback, General playback, Event playback, Tag playback, Smart playback |
| Multi-channel Playback | Up to 16 channels |
| SMD Plus by Camera | All channels (8 targets/s) |
| SMD Plus by NVR | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, Rain and lighting condition change |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search (Supports IP camera, DVR, NVS, etc.), InstaOn, Auto Registration, ONVIF (Profile T, Profile S, Profile G), CGI, SDK |
| Audio Input | 1 channel RCA |
| Audio Compression | G.711a, G.711u, PCM, G726, AAC |
| Interface Ports | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port), 1 HDMI, |
| Ethernet | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Backup Mode | USB device and network |
| Smart Phone | iOS, Android |
| Browser | Chrome, IE, Safari, Edge |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | <10 W (without HDD) |
| Operating Temperature | –10°C to +55°C (14°F to +131°F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Storage Temperature | –20°C to +60°C (–4°F to +140°F) |
| Dimension | 260.0 mm × 232.5 mm × 47.6 mm |
| Weight | 0.85 kg |
