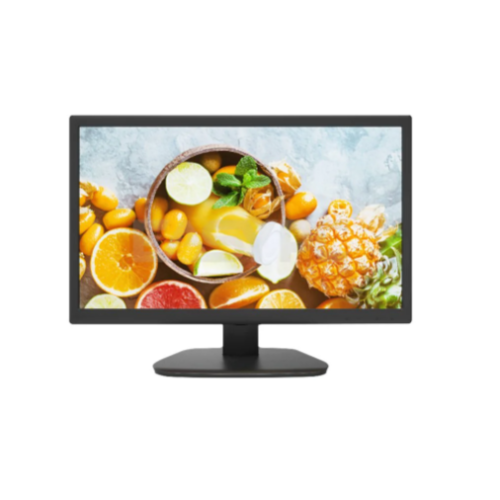

DHI-LM22-C200 21.45’’ Monitor

Technical Specification

Model Model: DHI-LM22-C200

Display Screen Size: 21.45"

Panel type: VA

Aspect Ratio: 16:9

Resolution: 1920x1080

Backlight: E-LED

Brightness/Luminance: 250nits(typ)

Contrast Ratio: 3000:1

Color Support: 99% sRGB, 85% NTSC, 85% DCI-P3, 85% Adobe RGB

Viewing Angl: (H/V) 178°(H)/178°(V)

Response time: 4ms(OD)

Refresh Rate: 75Hz

Signals

Interface: VGA×1?HDMI 1.4×1?Audio out×1

General

Power Supply: DC 12V 2A

Power Type: Adapter

Consumption (Standard): TYP. 19W, MAX. 24 W

Consumption (Standby): <0.5W

Net Weight: 2.5kg

Gross Weight: 3.74kg

Tilt Angles: -5°±2°/15°±2°

Swivel(angle): N/A

Pivot(angle/direction:  N/A

Height Adjustment: N/A

VESA: 75x75mm

Dimension(W×H×D): 495.8x286.3x36.7mm(without stand)

Package(W×H×D): 554x120x353mm

Work Environment

Temperature: 0°~40°(32°F~104°F)

Humidity: 10%~85%
