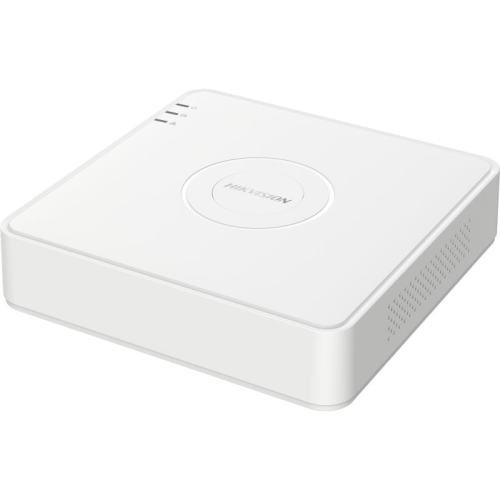

iDS-7108HQHI-M1/S 8-ch 1080P Mini 1U H.265 AcuSense DVR

Motion Detection 2.0

Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Perimeter Protection

Human/Vehicle Analysis: Up to 4-ch

Facial Detection

Facial Detection And Capture: Face picture detection, face picture search

Video And Audio

IP Video Input: 2-ch (up to 10-ch)

                        Enhanced IP mode on:

                        4-ch (up to 12-ch), each up to 4 Mbps

                        Up to 6 MP resolution

                        Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input: 8-ch

                                BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection

HDTVI Input: 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4                                MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input: 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,                               1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input: 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,                                1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

CVBS InputSupport

HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode: HDMI/VGA simultaneous output

Audio Input: 1-ch, RCA (2.0 Vp-p, 1 K?)

                     8-ch via coaxial cable

Audio Output: 1-ch, RCA (Linear, 1 K?)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)

Synchronous Playback: 8-ch

Recording

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution: When 1080p Lite mode is not enabled:

                                   3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

                                   When 1080p Lite mode is enabled:

                                   3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate: Main stream:

                    When 1080p Lite mode not enabled:

                    For 3K stream access: 3K lite@12fps;4 MP

                    lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

                    For 5 MP stream access: 5 MP lite@12fps;4 MP

                    lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

                    For 4 MP stream access: 4 MP

                    lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

                    For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps

                    (P)/30fps (N)

                    For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

                    When 1080p Lite mode enabled:

                    3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p

                    lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

                    Sub-stream:

                    WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bitrate: 32 Kbps to 6 Mbps

Dual-Stream: Support

Stream Type: Video, Video & Audio

Audio Compression: G.711u

Audio Bitrate: 64 Kbps

Network

Total Bandwidth: 96 Mbps

Remote Connection: 64

Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

SATA: 1 SATA interface

Capacity: Up to 10 TB capacity for each disk

Alarm In/Out: N/A

USB Interface: Real panel: 2 × USB 2.0

General

Power Supply: 12 VDC, 1.33 A

Consumption: ? 12 W (without HDD)

Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity: 10% to 90%

Dimension (W × D × H): 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)

Weight: ? 1 kg (without HDD, 2.2 lb.)
