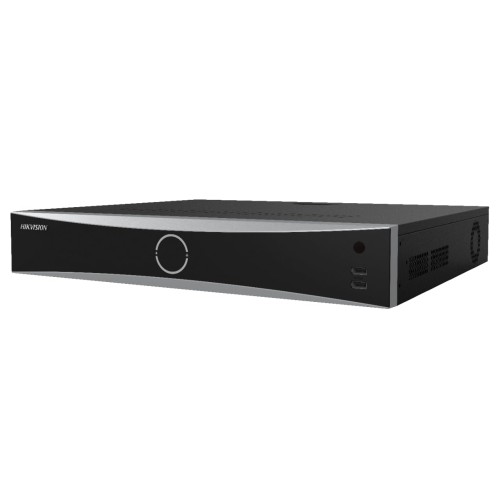

DS-7716NXI-K4 16-ch Hikvision 1.5U K Series AcuSense 4K NVR

Intelligent Analytics

AI By Device: Facial recognition, perimeter protection, motion detection 2.0

AI By Camera: Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

Facial Recognition

Facial Detection And Analytics: Face picture comparison, human face capture, face picture search

Face Picture Library: Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ? 4 MB, total capacity ? 1 GB)

Facial Detection And Analytics Performance: 1-ch, 8 MP

Face Picture Comparison: 4-ch

Motion Detection 2.0

By Device: All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm

By Camera: All channels

Perimeter Protection

By Device: 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

By Camera: All channels

Video And Audio

IP Video Input: 16-ch

Incoming Bandwidth: 160 Mbps

Outgoing Bandwidth: 160 Mbps

HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode: HDMI/VGA independent output

CVBS Output: N/A

Audio Output: 1-ch, RCA (Linear, 1 K?)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input )

Decoding

Decoding Format: H.265/H.265+/H.264+/H.264

Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback: 16-ch

Decoding Capability

Stream Type: Video, Video & Audio

Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC

Network

Remote Connection: 128

API: ONVIF (profile S/G); SDK; ISAPI

Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

Auxiliary Interface

SATA: 4 SATA interfaces

Capacity: Up to 10 TB capacity for each HDD

Serial Interface: 2 RS-485 (half-duplex), 1 RS-232

Alarm In/Out: 16/4 (16/9 is optional)

USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Ctrl 12V: N/A (optional to support)

DC 12V: N/A (optional to support)

General

GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian

Power Supply: 100 to 240 VAC, 50 to 60Hz

Consumption: ? 20 W (without HDD)

Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)

Working Humidity: 10 to 90 %

Dimension (W × D × H): 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")

Weight: ? 5 kg (without HDD, 11 lb.)

Certification

FCC: Part 15 Subpart B, ANSI C63.4-2014

CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

Obtained Certification: CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
