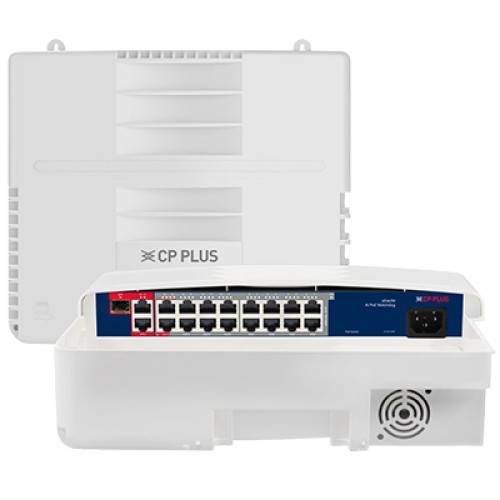

CP-ANW-GPU8G2F2D-N12 8Gigabit PoE Port + 2Gigabit Uplink Port + 2SFP Port Outdoor PoE Switch
₹4,520.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Network Port | PoE (1~6) : 10/100/1000Mbps PoE ports (RJ45), PoE (7~8) : 10/100/1000Mbps PoE ports (RJ45), Support bt 60W High Power, LAN (1~2): 10/100/1000Mbps uplink port (RJ45), SFP (1~2): 10/100/1000Mbps uplink ports (SFP) |
| Network Standard | IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet |
| Transmission Rate | 2000Mbps Full Duplex; 10 or 100 or 1000Mbps Half Duplex |
| Transmission Distance | 130m |
| MAC Address List | 8K |
| Bandwidth | 24Gbps |
| Network Latency | (10 to 100Mbps): ?16?s (use the 64byte package size) |
| Frame Filter & Transmission Rate | 14800pps the most for 10Mbps port, 148800pps the most for 100Mbps port, 1488000pps the most for 1000Mbps port |
| Power Budget | 120W |
| Power Input | AC 180~240V, Total ?120W |
| Power Output | PoE 1~6 Port: 1/2(+52V), 3/6 (GND)?30W, PoE7~8 Port:1245(+53V),3678(GND) Compatible1/2(+52V),3/6(GND)?60W |
| Watchdog | Port 1~8 |
| Lightning Protection | 6KV, Per: IEC61000-4-5 |
| ESD Protection | 8KV, Per: IEC61000-4-2 |
| Operating Temperature | -30°C ~60°C |
| Weatherproof Standard | IP65 |
| Operating Humidity | 10%~90% (Non-condensing) |
| Storage Temperature | -40°C ~70°C |
| Storage Humidity | 5%~90% (Non-condensing) |
| Dimension | 310mm(L) x 260mm(W) x 100mm(H) |
| Weight | 1.6Kg |
| Package Content | AC Power Cable, User Manual |
