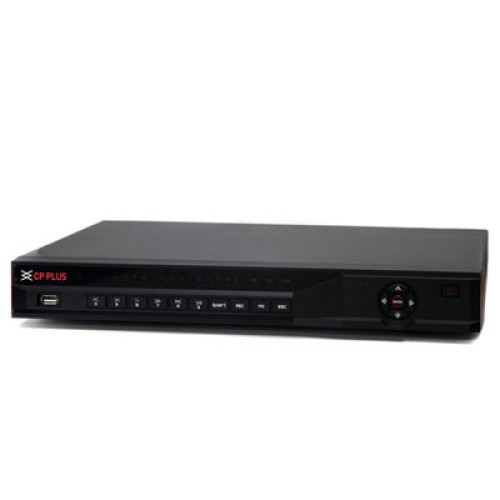

CP-UNR-4K4322-V3 32Ch. 4K Network Video Recorder(STQC APPROVED)
₹13,110.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Processor | Industrial-grade embedded processor |
| Operating System | Embedded LINUX |
| Two-way Talk | 1 × RCA input ; Audio Input/ Audio Output |
| User Interface | GUI |
| Video Output | 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI |
| Channel | 32 channel |
| Bandwidth Incoming | Access: 160 Mbps; Storage: 128 Mbps; Forward: 48 Mbps |
| Motion Detection | MD Zones: 396(22×18). |
| Video Loss | supports |
| Alarm Input | 4 channel |
| Alarm Output | 2 Channel |
| Smart Phone | iPhone, iPad, Android Phone |
| Hard Disk | 2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| Trigger Events | Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms |
| Recording Mode | Manual record; alarm recording; SMD recording; smart recording |
| Search Mode | Time /Date, MD and Exact Search (accurate to second), Smart search |
| Backup Mode | USB Device/Network |
| Playback | Play/pause/stop/slow/quick/backward/by frame Full screen, backup (video clip/file), partial zoom in, and audio on/off |
| Ethernet | 1 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port |
| Interface Ports | 2 USB Ports (1 × front USB2.0; 1 × back USB2.0) |
| Protocols | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search, P2P, auto register, RTSP, ONVIF (profile T/S/G); CGI; SDK |
| Power Supply | DC12V/4A |
| Power Consumption | < 5.6 W (HDD not included, idling) |
| Working Temp | -10°C to +55°C (+10 °F to +131 °F) |
| Dimension | 375 mm × 282.4 mm × 53 mm |
| Weight | 1.5 kg |
