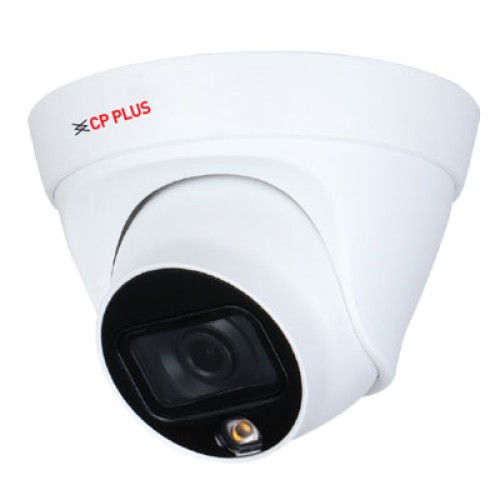

CP-UNC-DA21L2C-GP-V3 2MP Full-color Guard+ Network IR Dome Camera
₹2,921.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Image Sensor | 1/2.8" 2MP PS CMOS Image Sensor(0.9071Cm) |
| Minimum Illumination | [email protected] |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Lens | 3.6mm (2.8mm Optional) |
| Frame Rate | Main stream: 1920 × 1080@1–25/30 fps; Sub stream: 704 × 576@1–25 fps; 704 × 480@1–30 fps; *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Gain Control (AGC) | Auto/Manual |
| ICR | Color/B/W |
| Lens Type | Fixed-focal |
| Privacy Mask | 4 Area |
| Max. Aperture | F1.6 |
| S/N Ratio | >56dB |
| DORI Distance | 3.6mm: 58.9 m (Detect) 23.6 m (Observe) 11.8 m (Recognize) 5.9 m (Identify) 2.8mm: 43.9m (Detect) 17.5m (Observe) 8.8m (Recognize) 4.4m (Identify) |
| Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Mount Type | M12 |
| Angle of View | H: 107°; V: 56°; D: 127°; H: 88°; V: 44°; D: 105° |
| ROI | Supported (4 areas) |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Motion Detection | Off / On (4 area, Rectangle) |
| Audio | Built in Mic |
| Back Light Compensation | BLC / HLC / DWDR |
| Audio Compression | G.711A; G.711Mu; G.726 |
| Video Compression | Smart H.264+; H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| SDK and API | Supported |
| Encode Strategy | Instastream |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP,ONVIF (Profile S); CGI; InstaOn clou |
| Cyber Security | Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception |
| Bit Rate | H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6400 Kbps |
| Illumination Distance | Illumination Distance 15 Mtr. |
| Operating Temperature | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
| Storage Temperature | -40 °C to +60 °C (–40 °F to +140 °F) |
| Smart Phone | iPhone, iPad, Android Phone |
| Power Source | 12V DC/PoE (802.3af) |
| Power Consumption | Basic power consumption: 1.2 W (12 VDC); 2 W (PoE) Max. power consumption (H.265+Warm light intensity): 4.2 W (12 VDC); 5.4 W (PoE) |
| Ethernet | RJ-45 (10/100Base-T) |
| Casing | Inner core: Metal + plastic Cover: Plastic Decoration ring: Plastic Pedestal: Plastic |
| Dimension | 85.5 mm × ?109 mm |
| Weatherproof Standard | IP67 |
| Weight | 0.24kg |
