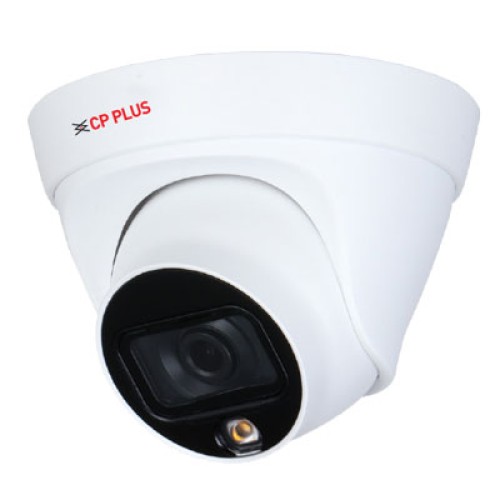

CP-UNC-DA21L2-GP-V3 2MP Full-color Guard+ Network IR Dome Camera
₹2,661.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Image Sensor | 1/2.8" 2Megapixel progressive CMOS (0.9071 cm) |
| Minimum Illumination | [email protected] |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Lens | 3.6mm (2.8mm Optional) |
| Frame Rate | Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
| Gain Control (AGC) | Auto/Manual |
| ICR | Color/B/W |
| Privacy Mask | 4 Area |
| S/N Ratio | >56dB |
| Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Angle of View | 3.6mm: Horizontal: 88°; Vertical: 46°; Diagonal: 104° 2.8mm: Horizontal: 106°; Vertical: 56°; Diagonal: 127° |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast, ONVIF (Profile S/Profile T); CGI; InstaOn; Genetec |
| ROI | Yes (4 areas) |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Motion Detection | Off / On (4 area, Rectangle) |
| Back Light Compensation | BLC / HLC / DWDR |
| Video Compression | Instastream/ H.265/ Smart H.264+/ H.264/ H.264B/ MJPEG (only supported by the sub stream) |
| Bit Rate | H.264: 32 Kbps–6144 Kbps ; H.265: 12 Kbps–6400 Kbps |
| Illumination Distance | Illumination Distance 20 Mtr. |
| Operating Temperature | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
| Smart Phone | iPhone, iPad, Android Phone |
| Power Source | 12V DC/PoE (802.3af) |
| Power Consumption | Basic power consumption: 1.4W (12V DC); 2.2W (PoE) Max. power consumption (ICR + H.265+IR intensity): 4.2W (12V DC); 5.3W (PoE) |
| Ethernet | RJ-45 (10/100Base-T) |
| Casing | Metal + Plastic |
| Dimension | 85.5 mm × ?109 mm |
| Weatherproof Standard | IP67 |
| Weight | 0.24kg |
