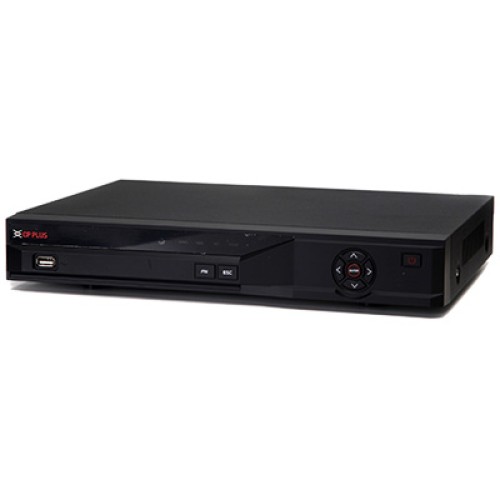

CP-UVR-3201K2-I3 32 Ch. 5M-N Digital Video Recorder
₹24,013.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| IP Camera Input | Up to 32 channels of IPC access 32 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps |
| Analog Camera Input | 32 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect |
| User Interface | Web; local GUI |
| Video Output | 1 HDMI, 1 VGA, 1 TV |
| Camera Input | CVI: 5MP, 4 MP, 1080P@25/30fps; 720P@50/60fps; 720P@25/30fps. TVI: 5MP, 4MP, 3MP, 1080P@25/30fps; 720P @25/30fps. AHD: 5MP, 4MP, 3MP, 1080P@25/30fps, 720P @25/30fps. |
| Perimeter Performance of AI by DVR (Number of Channels) | Advanced Model: 2 channels, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel |
| Resolution | HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| SMD Plus by DVR | 16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change |
| Video Compression | H.265/H.264+/H.264 |
| Video Display Split | 1/4/8/9/16/25/36 |
| Encode Strategy | AI Instastream/ Instastream |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Output | 1 Channel RCA |
| Audio Input | 1 Channel RCA (external); 32 Channel BNC (coaxial audio) |
| Audio Sample Rate | 8 KHz, 16 bit Per Channel |
| Motion Detection | Support |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| Video Loss | Support |
| Audio Bit Rate | 64 Kbps Per Channel |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| General Alarm | Motion detection, video loss, tampering |
| Face Detection Performance of AI by DVR (Number of Channels) | 2 channels (up to 12 face images/s) |
| Bit Rate | 32 Kbps–6144 Kbps Per Channel |
| Smart Phone | iPhone, iPad, Android Phone |
| Face Recognition Database Capacity | Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries ions and state can be added to each face image |
| Anomaly Alarm | No disk, storage error, low space, offline, IP conflict, MAC conflict |
| Face Recognition Performance of AI by DVR (Number of Channels) | 2 Channels |
| Hard Disk | 2 SATA ports, up to 16TB Each, the maximum HDD capacity varies with environment temperature |
| Recording Mode | General, motion detection; intelligent; alarm; POS |
| Disk Group | Yes |
| Network Mode | Single-address mode |
| Backup Mode | USB Device/Network |
| Playback | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Recording Playback | 1/4/9/16 |
| Ethernet | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Interface Ports | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 RS485 |
| Protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; InstaOn; ONVIF 21.06; CGI |
| Power Supply | 12 VDC, 5 A |
| Power Consumption | Lower than 17 W (without HDD) |
| Working Temp | -10°C to +55°C (+14°F to +131°F), 0–90% RH |
| Dimension | 375.0 mm × 289.4 mm × 53.0 mm (W × D × H) |
| Weight | 1.98kg |
