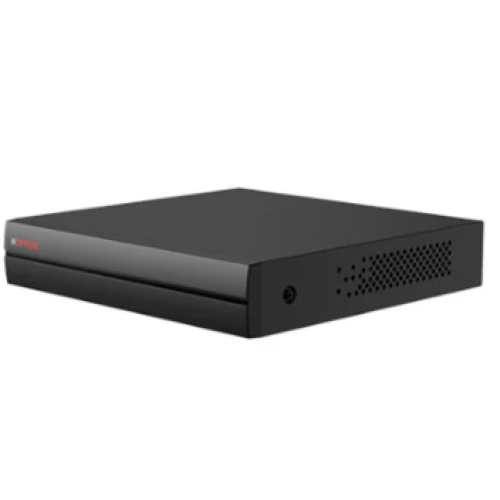

CP-UVR-0401L1-4KI3 4Ch. 4K-N/5MP Digital Video Recorder
₹5,750.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 4+4 Ch.(analog channels are converted into IP channels) each channel up to 8MP. Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled. |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| User Interface | GUI |
| Video Output | 1 HDMI, 1 VGA |
| Video Resolution | VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Recording | Main stream: All channel 4K (1 fps–7 fps); 6MP (1 fps– 10 fps); 5MP (1 fps–12 fps); 4K-N, 4MP/3MP (1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps); Sub stream: 960H (1 fps–15 fps); D1/CIF (1 fps–25/30 fps) |
| Resolution | 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF |
| Video Compression | AI Instastream, Instastream, H.265; H.264+; H.264 |
| Video Display Split | 1/4 |
| Video Channel | 4 channels |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Output | 1 channel RCA, 4-channel BNC (Coaxial Audio) |
| Audio Input | 1 channel, RCA |
| Motion Detection | MD Zones: 396 (22 × 18) |
| Video Loss | Supports |
| Smart Phone | iPhone, iPad, Android Phone |
| Face | Gender; age group; glasses; expressions; face mask; beard |
| Hard Disk | 1 SATA port, up to 16TB.(The maximum HDD capacity varies with environment temperature.) |
| Database Management | Up to 10 face databases and 20,000 images. |
| Bit Rate | 32 kbps–6144 kbps |
| Recording Mode | General, motion detection; intelligent; alarm; POS |
| Backup Mode | USB Device/Network |
| Playback | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Ethernet | 1 RJ-45 port (10/100Mbps) |
| Interface Ports | 1 HDMI, 1 VGA, 2 USB Ports(2.0), 1 RS485 |
| Protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS,ONVIF 21.06, CGI Conformant, InstaOn |
| Power Supply | DC 12V/2A |
| Power Consumption | <7W (without HDD) |
| Working Temp | -10°C to +55°C (+14°F to +131°F), 0–90% RH |
| Dimension | 325.0 mm × 257.2 mm × 55.0 mm (W × D × H) |
| Weight | 1.16 kg |
