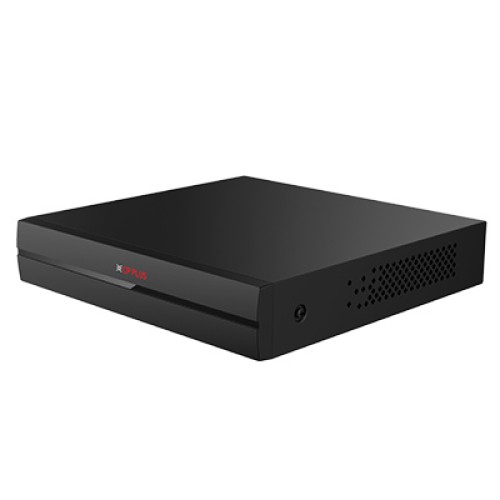

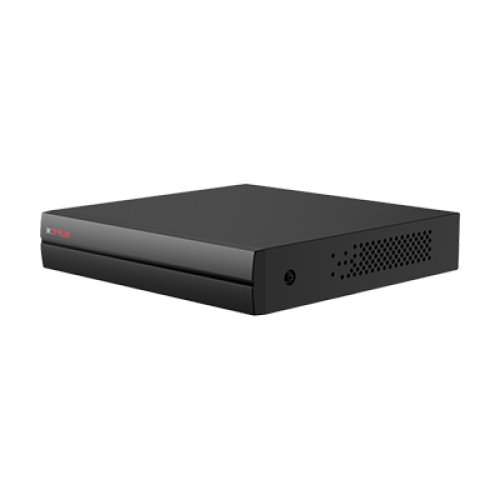

CP-UVR-0401E1V-I 4Ch. 1080N Digital Video Recorder
₹4,030.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| User Interface | Web, Local GUI |
| IMD+ by DVR | 4 Channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| IMD By Camera | 5 Channels |
| Analog Camera Input | 4 BNC ports, Supports HDCVI/AHD/TVI/CVBS autodetect |
| Camera Input | 1. CVI: 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps 2. TVI: 1080p@25/30fps; 720p@25/30fps 3. AHD: 1080p@25/30fps; 720p@25/30fps |
| IP Camera Input | Up to 5 Channels of IPC access 1 IP channel by default + 4 channels (Analog channels are converted to IP channels) Incoming bandwidth: 20 Mbps, recording bandwidth: 20 Mbps and outgoing bandwidth: 20 Mbps *After IP extension is enabled, the AI Function (IMD) will be disabled |
| Stream Capability | Dual stream |
| Video Frame Rate | Main stream: 1080N/720p/960H/D1/CIF@(1fps–25/30fps) Sub stream: CIF@(1fps–15fps) |
| Bit Rate | 32 kbps–4096 kbps |
| Audio Sample Rate | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 1 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Display Split | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 |
| Video Compression | AI Coding, Instastream, H.265, H.264+, H.264 |
| Audio Compression | G.711a, G.711u, PCM, AAC |
| Protocols | HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, InstaOn, Auto Connect, IP Search, ONVIF 24.06 (Profile T, Profile S, Profile G), CGI, SDK |
| Smart Phone | iOS, Android |
| Browser | Chrome, IE, Safari, Edge, Firefox |
| Recording Playback | 1/4 |
| Backup Mode | USB device and network |
| Playback Mode | Instant playback, General playback, Event playback, Tag playback, Smart playback |
| Intelligent Alarm | IMD |
| Alarm Linkage | Record, Snapshot (panoramic), IPC external alarm output, Audio, Buzzer, Log, Preset, Email |
| Audio Input | 1 Channel RCA 4 Channel BNC (Coaxial Audio) |
| Two-way Talk | Coaxial two-way talk: 4 Channel BNC Local and network user two-way talk: Shares the same audio input with the first channel |
| Disk Interface | 1 SATA port, up to 6 TB. This limit varies depending on the environment temperature |
| Interface Ports | 2 USB (2 rear USB 2.0 ports) |
| Ethernet | 1 (10/100 Mbps Ethernet port, RJ-45) |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | <7 W (without HDD) |
| Operating Temperature | –10°C to +45°C (+14°F to +113°F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Dimension | 197 mm × 204.3 mm × 41.5 mm |
| Weight | 540g |
