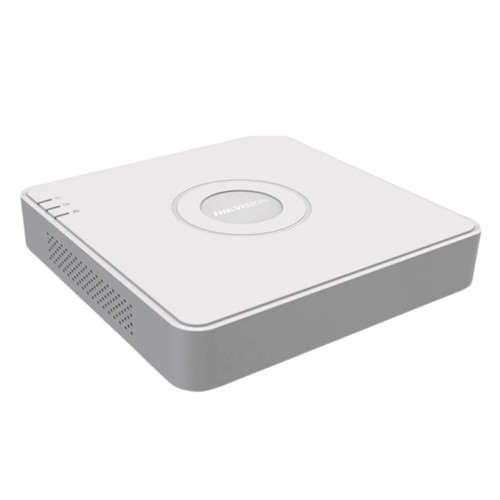

iDS-7116HQHI-M1/S Hikvision 16-ch Mini 1U H.265 AcuSense DVR(Digital Video Recorder)
₹10,579.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Device Type | video recorder |
| Connection type | wired |
| DVR type | hybrid |
| Video standard | IP, HDCVI, HDTVI, AHD, CVBS (Analogue) |
| Record resolution | 4 Mpx |
| Recording speed | Main Stream of 4 MP lite - 15 fps; Sub Stream WD1/4CIF - 12 fps; CIF - 25 fps |
| Number of channels | 16 |
| Number of analog cameras | 16 |
| Number of IP cameras | 24 |
| Video inputs | 16xBNC |
| Video output | no |
| Audio inputs | 1xRCA |
| Audio outputs | 1xRCA |
| Incoming Bandwidth | 128 Mbps |
| Network Interface | 1, RJ45 10M/100M/1000M, TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Alarm Inputs-Outputs | no |
| Alarm inputs | no |
| Alarm outputs | no |
| Video compression | H.265, H.265+ |
| Streaming | 2 streams |
| Recording modes | constant / schedule / motion detection / alarm |
| Maximum number of users | 128 |
| Mobile applications | iOS, Android |
| Number of HDD | 1 |
| HDD type | 1 SATA up to 10 TB |
| HDD storage capacity | 10 TB |
| RAID | no |
| PoE support | no |
| PoE ports | no |
| Wi-Fi support | no |
| HDMI port | 1 |
| VGA output | 1 |
| USB port | 2xUSB 2.0 |
| eSata | no |
| RS-232 | no |
| RS-485 | no |
| Intended for use | home, house, office, store, warehouse, production |
| Video Analytics | yes |
| Special features | Motion Detection 2.0 with deep learning for all analog channels. Perimeter protection based on deep learning. |
| Compatibility | ONVIF |
| Operating voltage | 12V DC |
| Consumption | 15 W |
| Dimensions (W?H?D) | 285×210×48 mm |
| Body color | white |
| Body material | no data |
| Weight | 1 kg |
| Temperature range | -10...+50°C |
