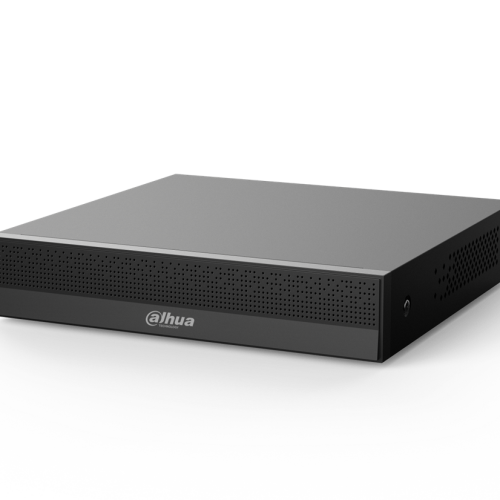

DH-XVR4B04-I 4 Channel 1U 1HDD Dahua DVR(Digital Video Recorder)

₹2,565.00

(Inclusive of all taxes)

Installation Required ₹400.00

H.265+/H.265 dual-stream video compression > Supports HDCVI/AHD/TVI/CVBS/IP video inputs > Max 5 channels IP camera inputs, each channel up to 2MP; Max 20 Mbps incoming bandwidth > Long transmission distance over coax cable > Supports 1 SATA HDD, up

SKU: DH-XVR4B04-I

Add to Cart

Warranty : 2 Year Product Warranty

Description

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Video and Audio

Analog Camera Input

4 channels, BNC

HDCVI Camera

1080p@ 25/30 fps, 720p@ 25/30/50/60 fps

AHD Camera

1080P@25/30, 720P@25/30fps

TVI Camera

1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

4CH: 4+1, each channel up to 2MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Video Compression

H.265+/H.265/H.264+/H.264

Resolution

1080N, 720P, 960H, D1, CIF

Record Rate

Main Stream;

All channels 1080N/720P/960H/D1/CIF/(1`25/30 fps)

Sub Stream

CIF (1`15 fps)

Video Bit Rate

32Kbps ~ 4096Kbps Per Channel

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Audio Compression

AAC(only for the 1st channel), G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bit Per Channel

Audio Bit Rate

64Kbps Per Channel

Display

Interface

1 HDMI ,1 VGA

Resolution

1920×1080, 1280×1024, 1280×720

Multi-screen Display

When IP extension mode not enabled:

4CH: 1/4

When IP extension mode enabled:

4CH: 1/4/6

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface

1 RJ-45 Port (100M)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

4CH: 1/4

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA Port, up to 6TB capacity

eSATA

N/A

Auxiliary Interface

USB

2 USB 2.0

RS232

N/A

RS485

N/A

Electrical

Power Supply

DC12V/1.5A

Power Consumption

(Without HDD)

< 7 W

Construction

Dimensions

Cooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“)

Net Weight

(without HDD)

0.54kg (1.19lb)

0.56kg (1.23lb)

Gross Weight

0.93kg (2.05lb)

Installation

Desktop installation

Environmental

Operating Conditions

-10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
