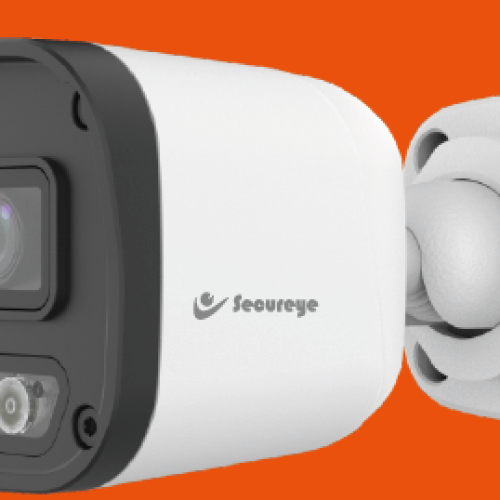

2MP Fixed Dual Light Network Camera -SR-C2B-F4A-DL

Camera
Max Resolution
Sensor
Min. Illumination
Day/Night
Shutter
Adjustment Angle
S/N
WDR
2 MP
1/3.0" CMOS
Colour: 0.005Lux (F1.6, AGC ON)
0 Lux with IR on
IR-cut filter with auto switch (ICR)
Auto/Manual, 1 to 1/100000 s
Pan: 0 ~ 360, Tilt: 0 ~ 90, Rotate: 0 ~ 360
> 52 dB
DWDR
Lens
Focal Length
Iris
Field of View (H)
Field of View (V)
Field of View (D)
4.0 mm
F1.6
67.3°
37.2°
77.8°
DORI
DORI Distance (Lens)
DORI Distance (Detect)
DORI Distance (Observe)
DORI Distance (Recognize)
DORI Distance (Identify)
4.0 mm
73.5m(241.0ft)
29.4m(96.4ft)
14.7m(48.2ft)
7.3m(24.1ft)
Illuminator
Supplemental Light
Illumination Distance (IR)
Illumination Distance
(Warm Light)
Wavelength
IR On/Off Control
Dual light
30 m (98.4 ft)
15 m (49.3 ft)
850 nm
Auto/Manual
Video
Video Compression
H.264 Code Profile
Frame Rate
Video Bit Rate
U-code
OSD
Privacy Mask
ROI
Video Stream
Ultra 265, H.265, H.264
Baseline profile, Main profile, High profile
Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
128 Kbps to 6144 Kbps
Support
Up to 4 OSDs
Up to 4 areas
Up to 8 areas
Dual Streams
White Balance
Digital Noise Reduction
Smart IR
Flip
HLC
Defog
Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
2D/3D DNR
Support
Normal, Flip Vertical, Flip Horizontal, 180°
Support
Digital Defog
SR-C2B-F4A-DL
Event
Basic Detection
General Function
Motion Detection, Audio Detection, Human Body Detection 2.0
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication,
User Authentication, HTTP Authentication
Audio
Audio Compression
Audio Bitrate
Suppression
Sampling Rate
G.711U, G.711A
64 Kbps
Support
8 kHz
Network
Protocols
Compatible Integration
User/Host
Client
Web Browser
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP,
SMTP, QoS, RTCP, RTMP
ONVIF (Profile S, Profile T), API, SDK
Up to 32 users. 2 user levels: administrator and common user
Uniarch Client, Uniarch app
Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Built-in Mic
Network
Support
1 × RJ45 10 M/100 M Base-TX Ethernet
Certification
EMC
Safety
Environment
Protection
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
CE LVD (EN 62368-1)
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
IP67 (IEC 60529)
General
Power
Dimensions
Weight
Material
Storage Environment
Working Environment
Surge Protection
Web Client Language
PoE (IEEE 802.3af) Power consumption: Max 3.5W
140 × 61 × 65mm (5.5” × 2.4” × 2.6”)
0.15kg (0.34lb)
Graphene + Plastic
-300C to 600C (-220F to 1400F), Humidity: ? 95% RH (non-condensing)
-300C to 600C (-220F to 1400F), Humidity: ? 95% RH (non-condensing)
4 KV
English
