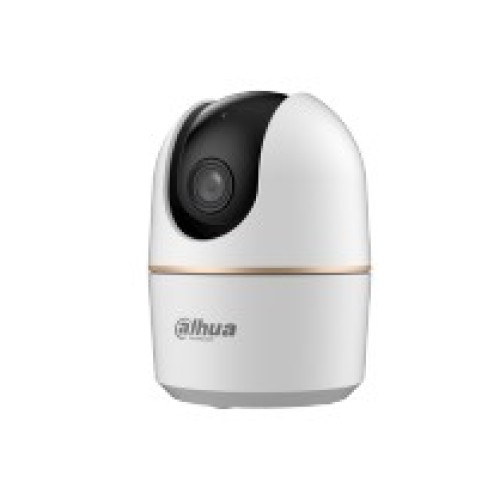

DH-H3A-U 3MP Indoor Fixed-focal Wi-Fi Pan & Tilt Network Camera

Series Overview Dahua Wireless series cameras are not only easy to install and operate, but also perform outstandingly and cost-effective. They provide full coverage of a scene with 3MP resolution, 0° to 355° pan and -5°to 80° tilt. Their powerful functions, such as human detection and auto tracking, assist with the accurate detection and continuous tracking of targets. Information is also synchronously sent to your phone to keep you up-to-date. These cameras are widely used in small and mediumsized scenes such as small-sized retail stores. Functions Motion Detection When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarm or records. Day/Night Dahua Day/Night function provides color image when illumination is adequate; when illuminance is inadequate, it switches night mode and provides white and black image. It can guarantee that the network camera can work normally when illuminance changes. Two-way Talk With its built-in high-sensitivity microphone and high-power speaker, the camera realizes two-way talk through the mobile app. Auto Tracking When a target is detected, the system immediately uses pan and tilt to automatically track the target while they are moving, keeping them within the visual range.

Technical Specification Camera Image Sensor 1/3.2" CMOS Max. Resolution 2304 x 1296 Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Illumination Distance Illuminator On/Off Control Auto Illuminator Number 1 (IR LED) Angle Adjustment Pan: 0° to 355°; Tilt: -5° to +80° Lens Max. Aperture 3.6 mm: F2.0 Field of View 3.6 mm: H: 79°; V: 43°; D: 94° Video Video Compression H.265 Video Frame Rate Main stream: 2304x1296@25 fps Sub stream: 640 × 480 @25 fps Resolution 3MP (2304x1296); VGA (640 × 480) Video Bit Rate H.265: 80 kbps–4096 kbps Day/Night Auto(ICR)/Color/B/W WDR DWDR Motion Detection OFF/ON (4 areas, rectangular) Image Rotation 0°/180° Audio Built-in MIC Yes, built-in Mic Built-in Speaker Yes, built-in speaker Audio Compression G.711a Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; motion detection; audio detection Network Network Port RJ-45 (10/100 Base-T) Wi-Fi IEEE 802.11b/g/n 2.4–2.4835 GHz, 2.4 G Storage Micro SD card (up to 256 GB) Management Software DMSS Mobile Client iOS;Android Certification Certifications CE

Power Power Supply 5 VDC, 1A Power Consumption Basic: 1.7 W; Max. (video stream acquiring + IR + PTZ Rotation): 3.5 W Environment Operating Temperature –10 °C to +45 °C (+14 °F to +113 °F) Operating Humidity ? 95% Structure Casing Material Plastic Product Dimensions ?77.8 mm × 108.1 mm (?3.06" × 4.26") Net Weight 204.2 g (0.45 lb)

Ordering Information Type Model Description 3MP Camera   3MP Indoor Fixed-focal Wi-Fi Pan & Tilt Network Camera DH-H3A-U 3MP Indoor Fixed-focal Wi-Fi Pan & Tilt Network Camera Accessories A806A-050100U-EU1 5 VDC 1 A Power Adapter TF-C100 MicroSD Memory Card
