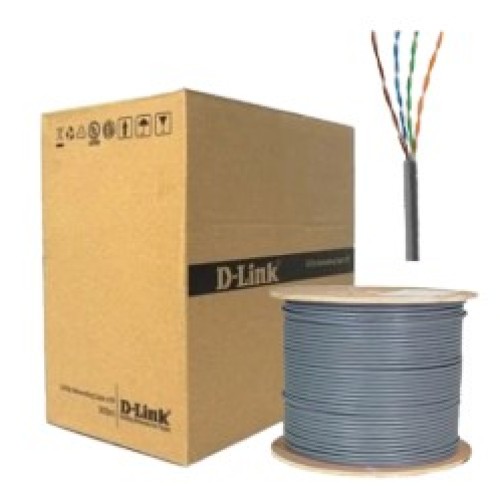

D-Link CAT 6 4 Pairs Unshielded Twisted Pair (UTP) Cable-NCB-C6UGRYR-100

₹4,090.00

(Inclusive of all taxes)

• 4 Pairs Unshielded Twisted Pair (UTP) Cable • Conductor Metal: Solid Bare Copper • Color Code: Gray • Conductor Diameter: 0.560mm Nominal, 23 AWG • Insulation Diameter: 0.970mm Nominal, Insulation Material: HD-PE • Jacket Material: PVC UL94V-0/LS

SKU: NCB-C6UGRYR-100

Add to Cart

Warranty : NA

Description

Specifications:

4 Pairs Unshielded Twisted Pair (UTP) Cable • Conductor Metal: Solid Bare Copper • Color Code: Gray • Conductor Diameter: 0.560mm Nominal, 23 AWG • Insulation Diameter: 0.970mm Nominal, Insulation Material: HD-PE • Jacket Material: PVC UL94V-0/LSZH • Cable Diameter: 6mm Nominal • PE Central Cross separator

APPROVAL / CERTIFICATION:

• Verified compliant with TIA/EIA-568C.2 & ISO/IEC 11801 standards by ETL • CUL listed • RoHs

TECHNICAL DETAILS:

• Nominal Velocity of Propagation: 69% • Characteristic Impedance: 100+15? • Conductor Resistance: < 9.38?/100m • Mutual Capacitance: < 5.6nF/100m • Resistance Unbalance: 5% Max • Capacitance Unbalance: 330pF/100m • Delay Skew: < 45nS • Bending Radius: < 4 X Cable Diameter at –20°C ± 1°C • Pulling Force: 11.5Kg • Temperature Range: -20° to +70°C
