Industrial Surveillance Fails Where Conditions Are Extreme

In controlled environments, most surveillance systems perform adequately.

But in steel plants and heavy industrial facilities, the challenge is completely different:
• High ambient temperatures
• Continuous infrared radiation
• Dust, vibration, and electromagnetic noise
• Need for uninterrupted monitoring

In such conditions, standard cameras don’t just underperform —they fail silently or give misleading data.

The AMNS Requirement: Reliable Thermal Monitoring, Not Just Visibility

At the AMNS facility, the requirement was not conventional CCTV.

It was:

A precise and constant temperature measurement in a highly irradiated industrial area.

This entailed many potential dangers:
• Warping of images by infrared rays
• Deterioration of sensors with usage
• Decline in temperature measurements' precision
• Unreliability in constant exposure conditions

The Main Problem

Restrictions of the Industrial Environment

• Strong emission of infrared in adjacent processes
• Highly irradiated environment that may affect sensors' effectiveness
• The problem of obtaining inaccurate thermal information
• Necessity of operating constantly

Engineering Solution: Shield the System without Blocking the Signal

This did not involve just picking a different camera.

It involved engineering the environment within which the camera operates.

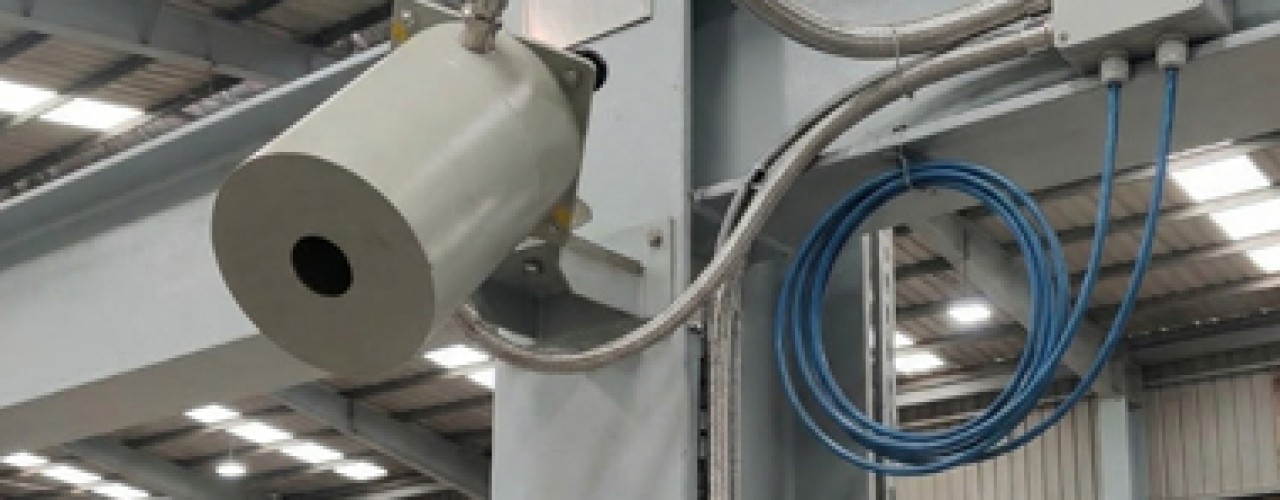

Ex-Proof Case and Germanium Glass Window

Design of a Thermal Camera Protection System

Our Solution Entailed:

• Ex-proof case
-- To withstand industrial conditions

• Germanium glass window
-- Integral in thermal imaging cameras

Significance of Germanium Glass

Unlike ordinary glass:
• Transmits infrared rays effectively
• Does not distort thermal measurements
• Preserves sensor efficiency
• Safeguards internal components from environmental factors

This is more than an attachment – it is the heart of thermal precision

System Architecture: Designed for Stability, Not Convenience

Integration of Field with Control Room

Components Used:

• Thermal camera with USB connectivity
• 4–20 mA signal for integration with the monitoring system
• Six-core screened cable
• Explosion-proof junction box with SMPS power supply
• Fiber optic communication via SFP modules
• Media converters linking to the control room
• Integration with DDC system

Data Communication

• Reliable data transfer over 400 meters distance

This Is What It Achieved

This process was not an installation process; it was establishing a reliable system in a challenging environment.

Results Obtained

• Temperature readings despite high radiation level
• Component protection
• Safe communication over long distances
• Effective integration into the plant’s monitoring systems

Lessons Learned from Fieldwork

In industrial applications, the key focuses are on:
• Camera brand name
• Camera resolution
• Camera price

But in reality

Environment dictates the system design, not technical specifications

Installation Errors Commonly Made

• Use of general enclosure in extreme heat locations
• Failure to consider the effect of infrared radiation
• Misuse of cables resulting in signal distortion
• Lack of control system integration (DDC/SCADA)

End Product

A system that appears to work – but cannot be relied upon

Final Word

In industrial surveillance:

Precision means security.
Reliability means responsibility.

Failure to deliver either equals danger.

About Transit Electronics Ltd.

Transit Electronics Ltd. develops and installs bespoke surveillance and monitoring systems in industries in India, emphasizing:

• Durability in harsh conditions
• High reliability
• Integration with operational infrastructure
