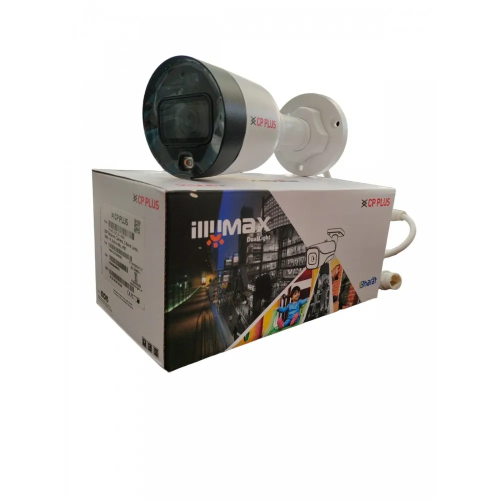

CP-UNC-TA21L3C-L 2MP Dual Light Bullet Camera - 30Mtr

Feature Specification Image Sensor 1/2.8" 2MP PS CMOS Image Sensor (0.9071 centimeter) Minimum Illumination 0.005 [email protected] (Color, 30 IRE), 0.0005 [email protected] (B/W, 30 IRE), 0 lux (IR on) Effective Pixels 1920 (H) × 1080 (V) Angle Adjustment Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° Shutter Speed Auto/Manual 1/3 s–1/100,000 s White Balance Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM 64 MB ROM 16 MB DORI Distance Lens 3.6mm: 44.1 (Detect), 23.6m (Observe), 11.8m (Recognize), 5.9m (Identify) Lens 2.8mm: 43.9m (Detect), 17.7m (Observe), 8.8m (Recognize), 4.4m (Identify) Gain Control(AGC) Auto/Manual Lens Type Fixed-focal Smart IR Support Max. Aperture F1.6 Lens Mount M12 Close Focus Distance 3.6 mm: 1.3m, 2.8 mm: 0.8m Lens 3.6mm Fixed Lens (2.8mm Optional) Video Compression H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) S/N Ratio >56dB Angle of View 3.6 mm: H: 87°, V: 44°, D: 105° ; 2.8 mm: H: 103°, V: 55°, D: 123° Back Light Compensation BLC/ HLC/ DWDR Encode Strategy Instastream, H.264+ stream Capability Dual Stream Frame Rate Main stream: 1920 × 1080@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *Product casing and specifications are subject to change without prior notice THINK CP PLUS THINK SECURITY Feature Specification Resolution 2M (1920 × 1080), 1.3M (1280 × 960), 1M (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) Audio Built-in Mic Motion detection OFF/ON (4 areas, rectangular) Privacy Mask 4 areas Noise Reduction 3D DNR ROI Support (4 areas) Audio Compression G.711a, G.711Mu, PCM, G.726, AAC Bit Rate H.265: 12 kbps–4096 kbps, H.264: 32 kbps–4096 kbps Bit Rate Control CBR/VBR Human Body Detection Support Protocol IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, ONVIF (Profile S, Profile T), CGI IntelliSearch Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos SDK and API Support Day/Night Color/B/W Ethernet RJ-45 (10/100Base-T) Alarm Event Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, Security exception, SMD (human) User/Host 6 Users (Total bandwidth: 24 M) Cyber Security Video encryption, Configuration encryption, Digest, WSSE, Account lockout, Security logs, Generation and importing of CA certification, HTTPS, Trusted boot, Trusted execution, Trusted upgrade IR Control Auto, Manual Mirror Function Support IR Number 1 (Multi-core (IR + warm) light) IR IR Range of 30 Mtr. Warm Light Warm Light Range of 30 Mtr. Iris Control Fixed Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) Weatherproof Standard IP67 THINK SECURITY THINK CP PLUS Feature Power Source Smart Phone Browser Power Consumption Operating Temperature Operating Humidity Dimension Casing Weight Dimensions (mm/inch) Specification 12 VDC/PoE (802.3af) iPhone, iPad, Android Phone IE, Chrome, Firefox Basic: 1.4 W (12 VDC), 2.2 W (PoE); Max.: 3.3 W (12 VDC), 4.4 W (PoE) (H.265 + intelligence on + warm light intensity) –40°C to +60°C (–40°F to +140°F) ?95%(RH), non-condensing 162.6mm × 70mm × 70mm Metal + Plastic 0.22kg
