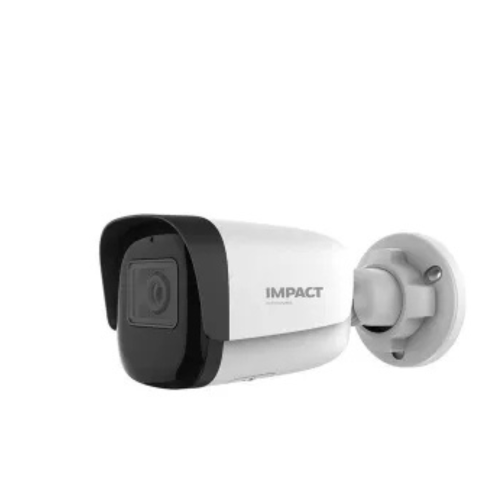

I-HIB4PI-LS 4MP Fixed Starlight IR Bullet Camera

CAMERA
Image Sensor 1/2.8” CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.002Lux@ (F1.6, ACG ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment Bracket, pan 0~360°, tilt 0~75°, roate 0~360°
LENS
Lens Type Fixed
Focus 4mm
Lens Mount M12
Aperture F1.6, Fixed
FOV Horizontal field of view: 93.8° (2.8mm)/78° (4mm)
ILLUMINATOR
IR LEDs 2
IR Range Up to 50m
Wavelength 850nm
SPECIFICATIONS

* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the same time.
COMPRESSION STANDARD
Video Compression IH+265/H.265/H.264
Video Bit Rate 32Kbps~6Mbps
Audio Compression G.711/G.711U/ADPCM
Audio Bit Rate 8K~48Kbps
Max. Resolution 2592x1520
Main Stream PAL: 25fps (2592x1520, 2560x1440, 2304x1296, 1920x1080, 1280x720)
NTSC: 25fps (2592x1520, 2560x1440), 30fps (2304x1296, 1920x1080, 1280x720)

Sub Stream PAL: 25fps (704x576, 704x288, 640x360, 352x288)
NTSC: 30fps (704x480, 704x240, 640x360, 352x240)

Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
OSD 16x16, 32x32, 48x48, 64x64, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions
Privacy Mask Yes, 4 regions
Smart Defog Yes
FEATURE
Alarm Trigger Motion Detection, Mask Alarm, IP Address Conflict
Video Analytics Tripwire, Perimeter
NETWORK
ANR Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support

Impact Series ANR Support NVR)

Protocols TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet
System Compatibility ONVIF (PROFILE S/T/G)
Remote Connection ?7
Client IH-View
Web Version Web5
INTERFACE
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O Mic in
Reset Button Yes
On-board storage Built-in MicroSD card slot, up to 512 GB
GENERAL
Web Client Language English
Operating Conditions -35o
C~65o
C, 0~95% RH
Power Supply DC 12V±25%, PoE (802.3af)
Power Consumption MAX: 6W (12V) MAX: 7W (PoE)
Protection IP67, Lightning protection, surge protection and voltage transient protection
Dimensions 160.8 68x74.5mm (6.33 2.68 2.93inch)
Weight Metal+Plastic: 0.3Kg (0.66lb) Metal: 0.48Kg (1.06lb)
